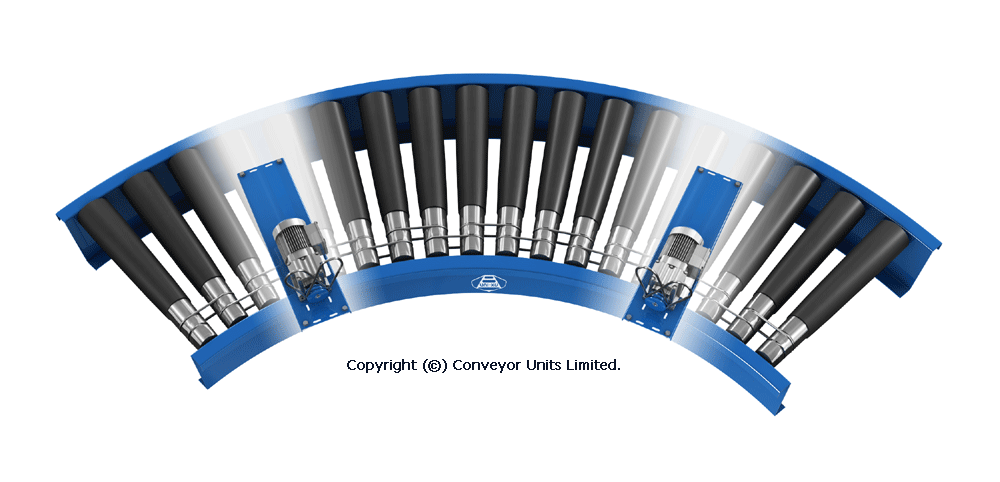

178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework.
Available in 30°, 45° and 60° units.
60mm and 75mm roller pitch on inner radius.
All bends have an inside radius of 859mm.
All bend rollers have durable True Taper ABS plastic taper segments to ensure correct load orientation and are double grooved at the drive belt position.
Band driven to top rollers direct from pulley on motor shaft.
Fitted with geared motor units of 0.09kW power.
Load capacity of 80kg/m.
Standard speeds up to 90 metres per minute.
Reversible.
Available with either 230 (delta) or 400V (star) 3ph motors.
Multiple drives can be connected from one inverter.
