Overview
- Rollers tangentially driven by 5/8” chain in a fully enclosed side channel.
- Offers minimal backlash, easy tensioning.
- Load capacity of 1500kg per pallet – straight modules are available to handle up to 4500kg total conveyor load.
- 4mm thick side channels.
- 3mm and 5mm thick roller options.
- Chain tension adjusted quickly without removing guards.
- 150mm or 200mm roller pitch.
- Ability to run cables in non-drive channel with fascia to close section off.
- Ability to fit photocells anywhere along frame via clamp brackets.

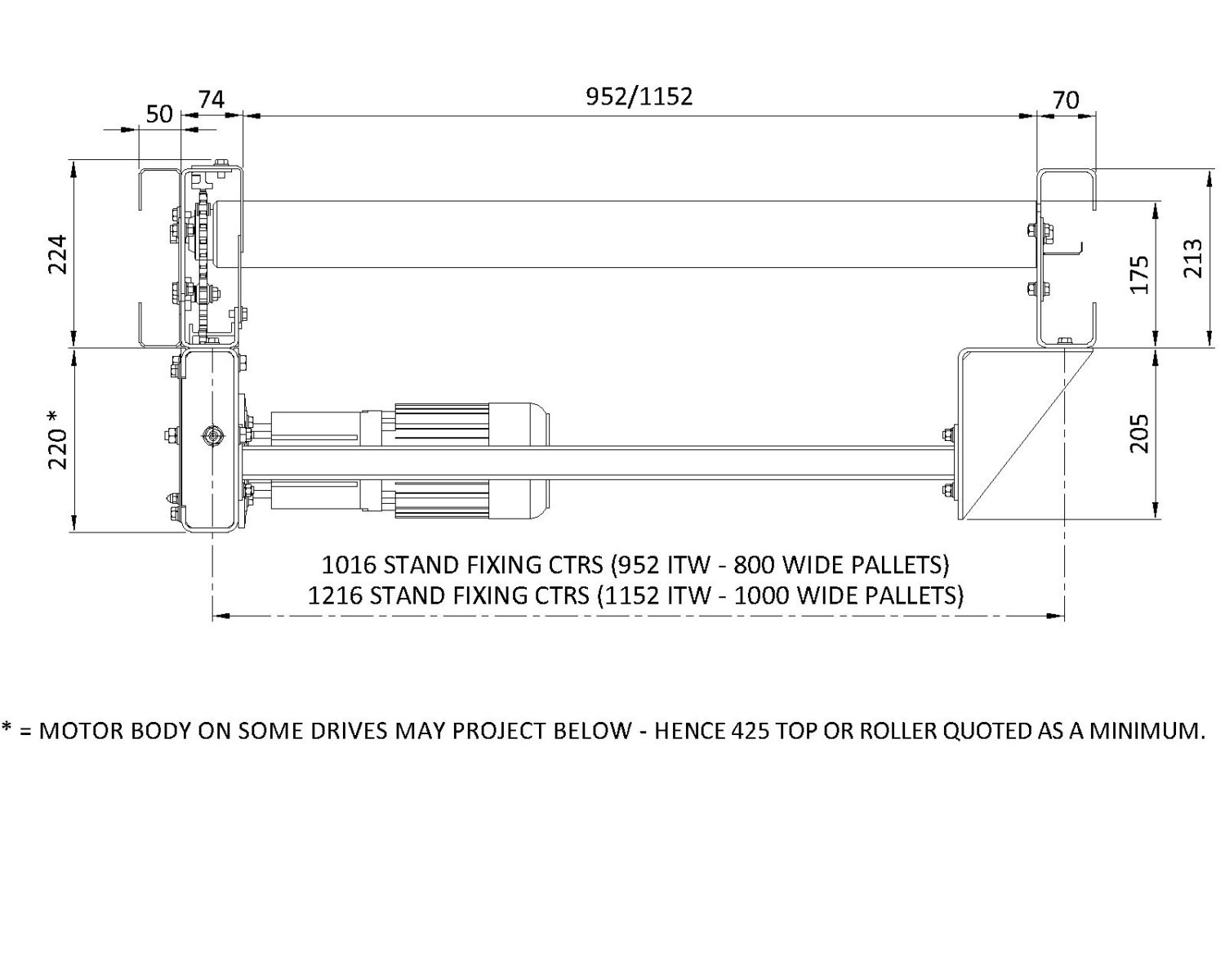

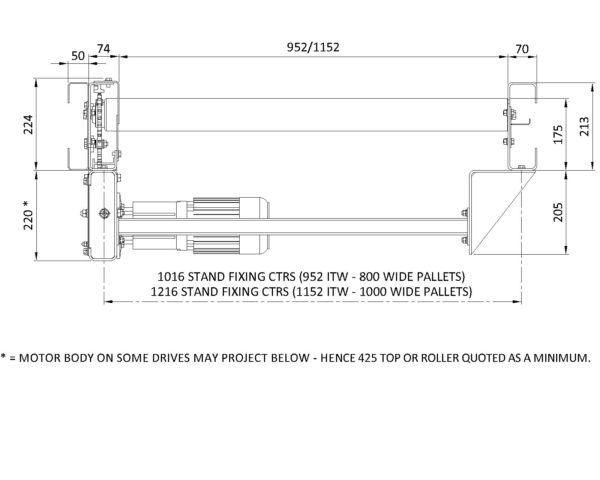

- Range of heights available from 425mm – 1050mm top of roller.
- Motors available – 0.37 kW, 0.55 kW, 1.1 kW and 1.5 kW.
- Standard lengths available – 1050mm to 6000mm in 150mm increments and 1200mm to 6000mm in 200mm increments.
- Speeds available – 12 and 18 metres per minute.
- Pallet size – 800mm wide x 1200mm lomg (1000Kg) / 1000mm wide x 1200mm long (1500Kg).
- Motors supplied non braked as standard. (Braked also available).
Video
Technical Information
|
12m/min |
|
| Load Capacity (kg) |
Motor Power (kW) |
Full Load Current (A) |
| 1500 |
0.37 |
0.95 |
| 3000 |
0.55 |
1.4 |
| 4500 |
1.1 |
2.8 |
|
18m/min |
|
| Load Capacity (kg) |
Motor Power (kW) |
Full Load Current (A) |
| 1500 |
0.55 |
1.4 |
| 3000 |
1.1 |
2.8 |
| 4500 |
1.5 |
3.6 |
