Painted Steel Belt Conveyor – G Type
•
Products
•
Belt Conveyors
•

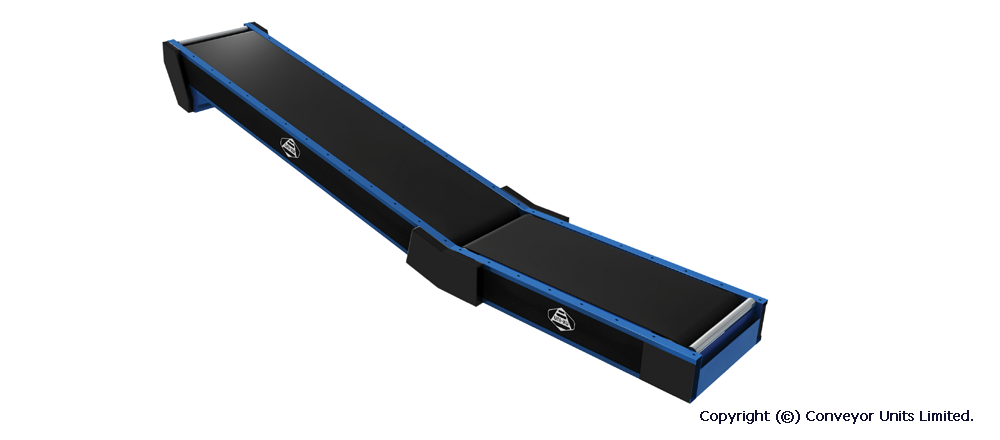

Painted Steel Belt Conveyor – G Type
Overview
End drive units fitted with SEW geared motor.
‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
Units up to 0.55 kW.
Black grip top conveyor belt.
Can be supplied with 60 / 150mm side guides.
Optional pop out rollers at either or both ends.
Full width steel undersheet fitted as standard.

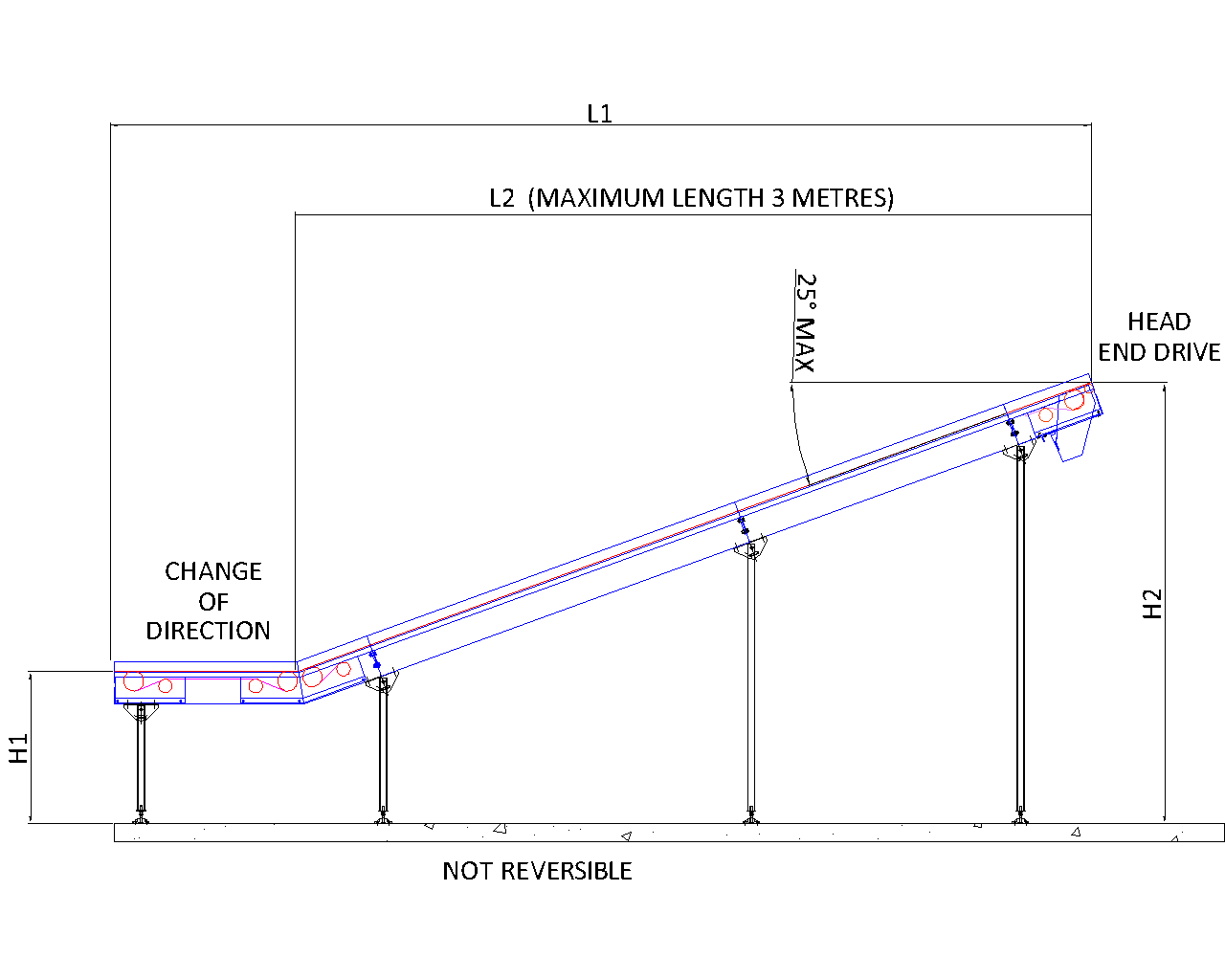

Standard angles of 10°, 15°, 20° and 25°.
Other angles available upon request.
Available as Incline and Decline.
