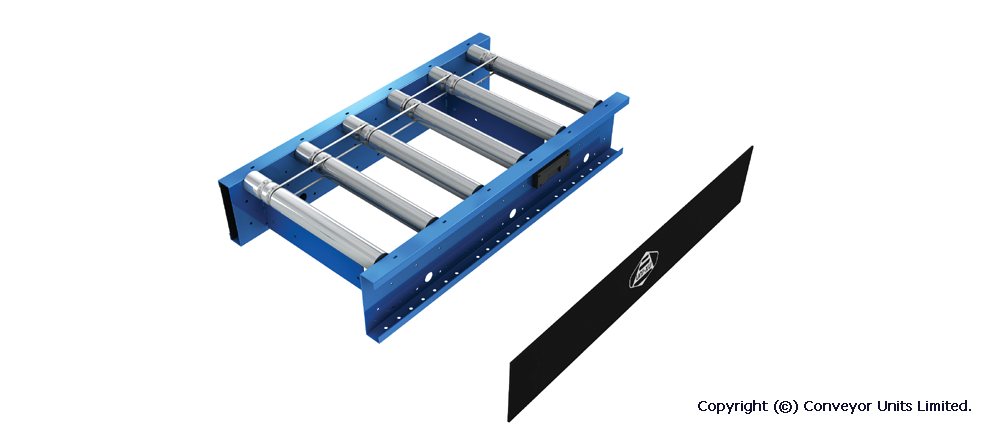

Painted Steel 24V Motorised Roller Conveyor ‘O’ Ring – 150mm Pitch

• Products • Motorised Rollers • Painted Steel 24V Motorised Roller Conveyor ‘O’ Ring – 150mm Pitch

Overview

  • Incorporates 50mm diameter rollers.
  • Adjustable speeds up to 55 metres per minute.
  • Drive capacity 5Kg per roller. For increased drive capacity, please contact the Sales Office as alternative drive transmissions are available.
  • Zero line pressure accumulation or simple transportation.
  • Supplied in 3 metre fully assembled lengths as standard. Other lengths available on request.
  • Suitable for conveying products with a minimum product length of 225mm (75mm pitch), 300mm (100mm pitch) and 450mm (150mm pitch).
  • Individual zones can be supplied with ‘Plug and Play’ connections or external control boards and photo electric cells.
  • Full product testing available in our showroom.
  • ‘C’ section framework, 175.5mm x 40mm having return folds for to retention of the facia.
  • ‘Z’ section framework, 178mm x 32mm x 2.5mm fully jig welded ‘Z’ section framework
  • Standard widths available: 412mm, 462mm, 512mm, 612mm, 762mm and 912mm.
  • Other widths available on request.

Video

150mm

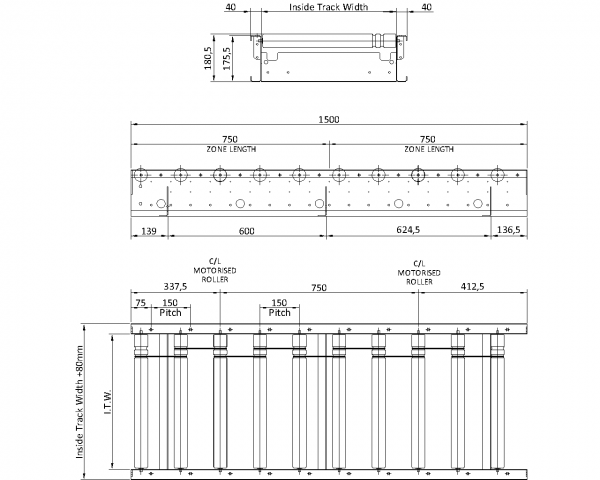

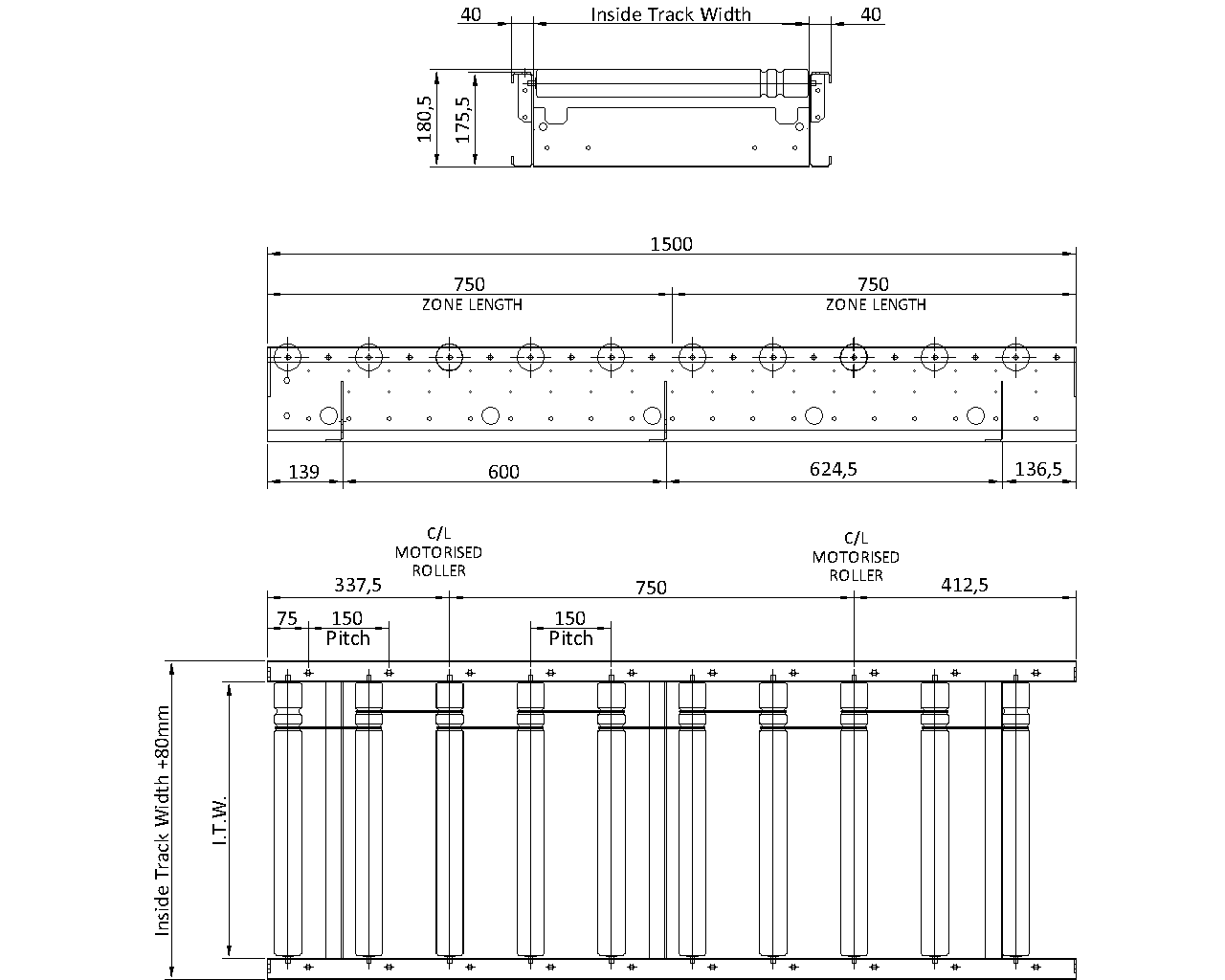

Painted Steel 24V Motorised Roller Conveyor ‘O’ Ring – 150mm Pitch Technical Drawing
