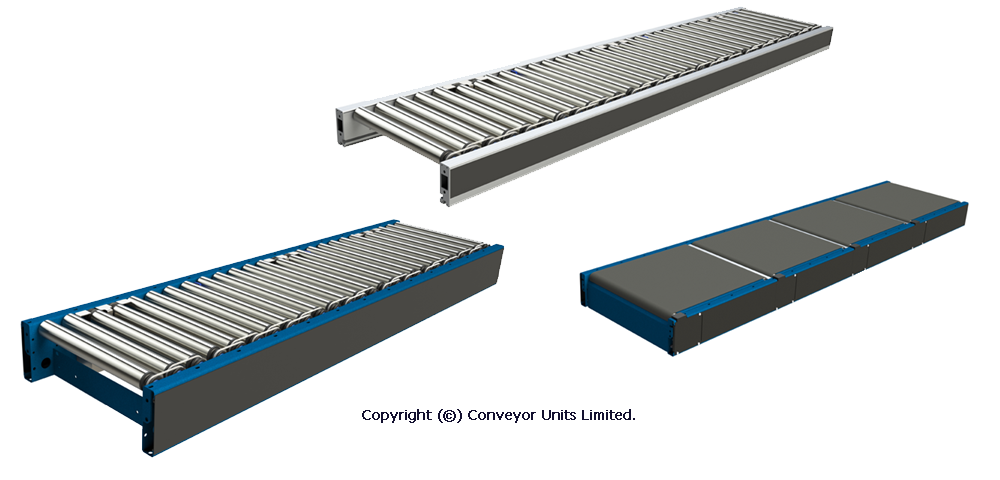

Painted Steel 24V DC Powered Conveyor – Straights – Roller and Belt Over Roller

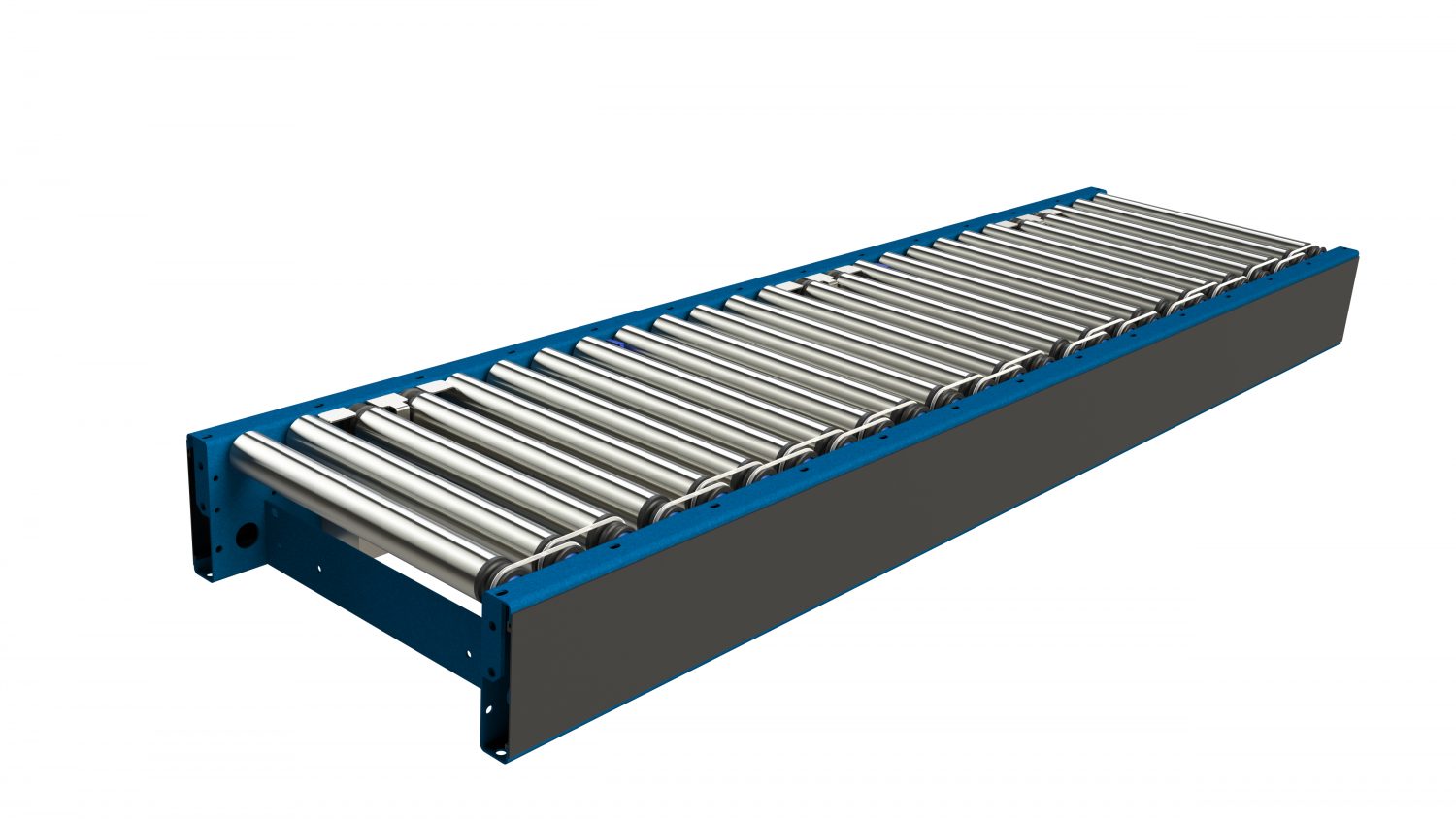

Roller Straights – Zero Line Pressure or Transport

• Roller Diameter: 50mm.
• Roller Pitches: 60mm, 75mm, 100mm and 150mm.
• Drive Options: Round Belt Drive or Poly V Drive.
• Motor Options: 24V DC: 12-35W or 12-60W.
• Speed: Adjustable up to 110m/min (1.84m/sec).
• Frame Options: Powder Coated Steel.
• Widths Available: 412mm, 462mm, 512mm, 612mm, 762mm, 912mm inside track width.
• Lengths Available: Up to and including 3 metres (in roller pitch increments).
• Photocells included in Zero Line Pressure variant.

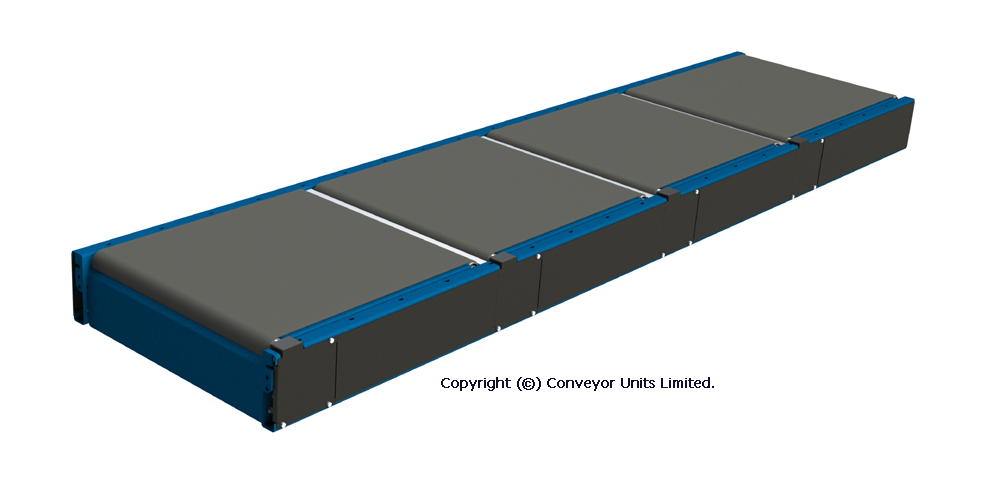

Belt Over Roller – Zero Line Pressure

• Head/Tail Roller Diameter: 50mm.
• Self-Tracking Longitudinally Grooved PVC topped Belts.
• Belt Width: Inside track width minus 24mm.
• Side skid decks eliminate any gaps at belts sides.
• Rollers beneath belts for low energy consumption.
• Motor Options: 24V DC: 12-60W.
• Speed: Up to 110m/min (1.84m/sec).
• Frame Options: Powder Coated Steel only.
• Widths Available: 412mm, 462mm, 512mm, 612mm, 762mm, 912mm inside track width.
• Lengths Available: Up to and including 3 metres (in roller pitch increments).
• Zone Lengths: 500mm, 600mm, 750mm, 1000mm and 1500mm.
• Photocells not included.
